How to Adjust Toilet Flush Valve Water Volume?

During daily use, many users encounter weak flush power, high water usage, incomplete waste removal. These issues often signal that the flush valve inside the toilet tank requires a new water volume setting. Although toilet structures vary, most household toilets share similar logic for flush volume adjustment. This guide explains core principles, adjustment methods, and practical checks that help complete the process in 2–3 minutes.

1. Why Adjust Flush Valve Water Volume?

You may need to adjust flush volume in the following situations:

l  Weak flush performance：Low water level or low discharge volume may reduce siphon strength.

l  High water consumption：Toilet tank drains unnecessary amounts during every flush.

l  New flush valve replacement：Height difference between old and new valve requires a new water level setting.

l  Water saving demand：Half flush and full flush need minimum water while still achieving effective flushing.

2. Key Principles That Influence Flush Volume

Flush volume depends on several internal elements:

l  Overflow tube height：Controls maximum water line inside the tank.

l  Half flush float height：Controls half flush water volume.

l  Full flush adjustment plate opening：Controls full flush water volume.

3. How to Adjust Flush Valve Water Volume?

1）Adjust Overflow Tube Height

Overflow tube height sets maximum tank water level, which defines maximum available flush volume.

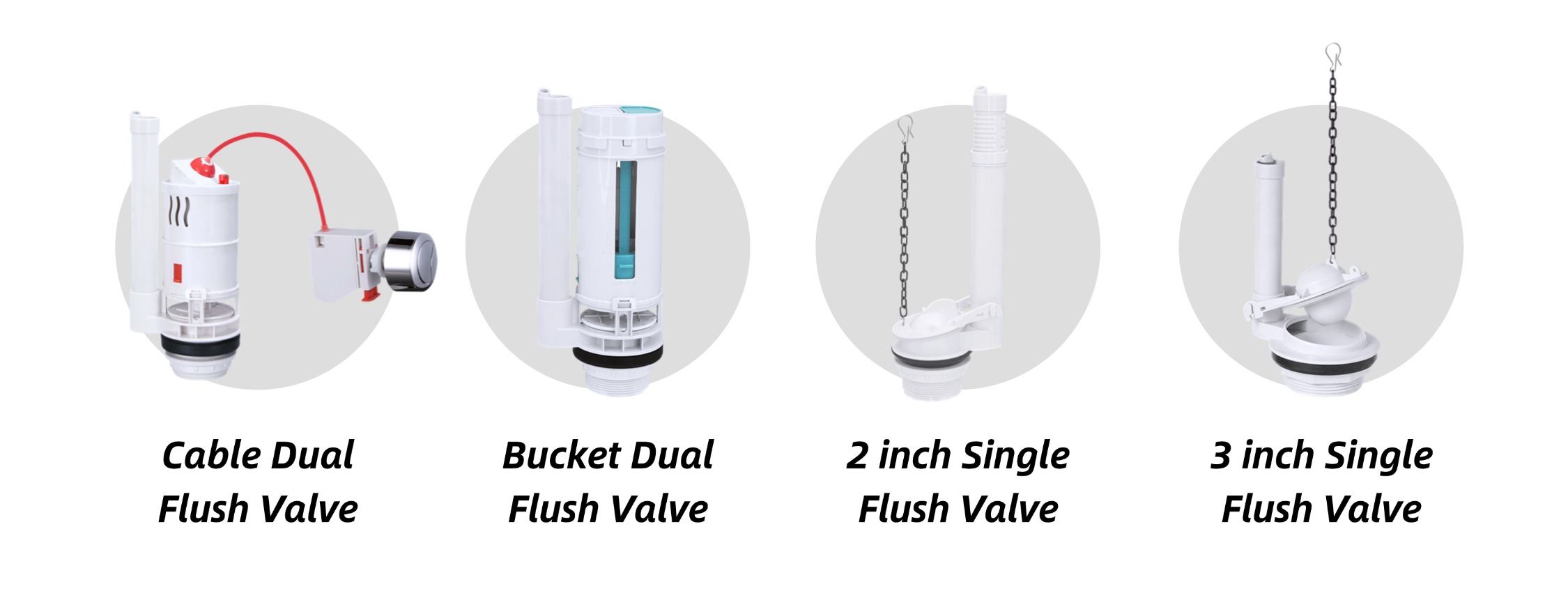

This method becomes the simplest adjustment for single flush push button flush valves.

For canister-type flush valves, this method works together with additional components for finer adjustment.

2）Adjust Half Flush and Full Flush Water Ratio

Most canister-style dual flush valves support independent adjustment for half flush water volume and full flush water volume.

(1) Half Flush Adjustment

Half flush adjustment has two methods:

direct movement for the half flush float height, or indirect adjustment through a top knob on the flush valve.

l  Half flush float moves upward → half flush water volume becomes lower

l  Half flush float moves downward → half flush water volume becomes higher

(2) Full Flush Adjustment

Full flush adjustment usually relies on an adjustment plate located at the bottom area for the flush valve.

This adjustment plate controls the release speed inside the full flush chamber.

When water inside the full flush chamber drains out completely, the full flush float drops under gravity and shuts the outlet, ending the full flush.

Therefore, the release speed inside the full flush chamber decides full flush duration:

l  Longer duration → higher full flush water volume

l  Shorter duration → lower full flush water volume

When the opening window controlled by the full flush adjustment plate becomes larger, full flush water volume becomes lower.

When the opening window becomes smaller, full flush water volume becomes higher.

4. How to Confirm Best Flush Volume?

Perform multiple flush tests:

l  A small paper group inside the toilet bowl drains smoothly

l  Waste removal completes in one flush

l  Half flush meets water saving demand

l  No overflow and no leakage inside the tank

If all checks pass, the flush valve reaches an optimal setting.

5. Summary

Flush valve adjustment focuses on three essential steps:

l  Set overflow tube height around 2–3 cm below tank rim

l  Adjust half flush and full flush opening sizes

l  Raise or lower water level to control flush strength

A short adjustment process upgrades flush performance and improves water efficiency for everyday use.
