How to Adjust Water Fill Valve in Toilet Tank?

Why Do You Need to Adjust the Toilet Fill Valve?

We often need to adjust the working water level when the toilet tank shows one of the following issues:

• Water level too high:

When the water level rises above the overflow tube of the flush valve, water keeps flowing into the overflow tube. The fill valve cannot reach the shut-off point and continues running, causing water waste and increasing household water bills.

• Water level too low:

The tank cannot store enough water to create a strong siphon in the toilet bowl. This results in weak flushing and poor waste removal.

• Height mismatch after installation or replacement:

When a new fill valve is installed, its height must match the old one. Both the main body and the float position should be adjusted to a similar level.

• Water-saving needs or different toilet designs:

Toilet tanks vary: some are tall and narrow, some are short and wide. You may need several adjustments to find the level that provides strong flushing power while saving water.

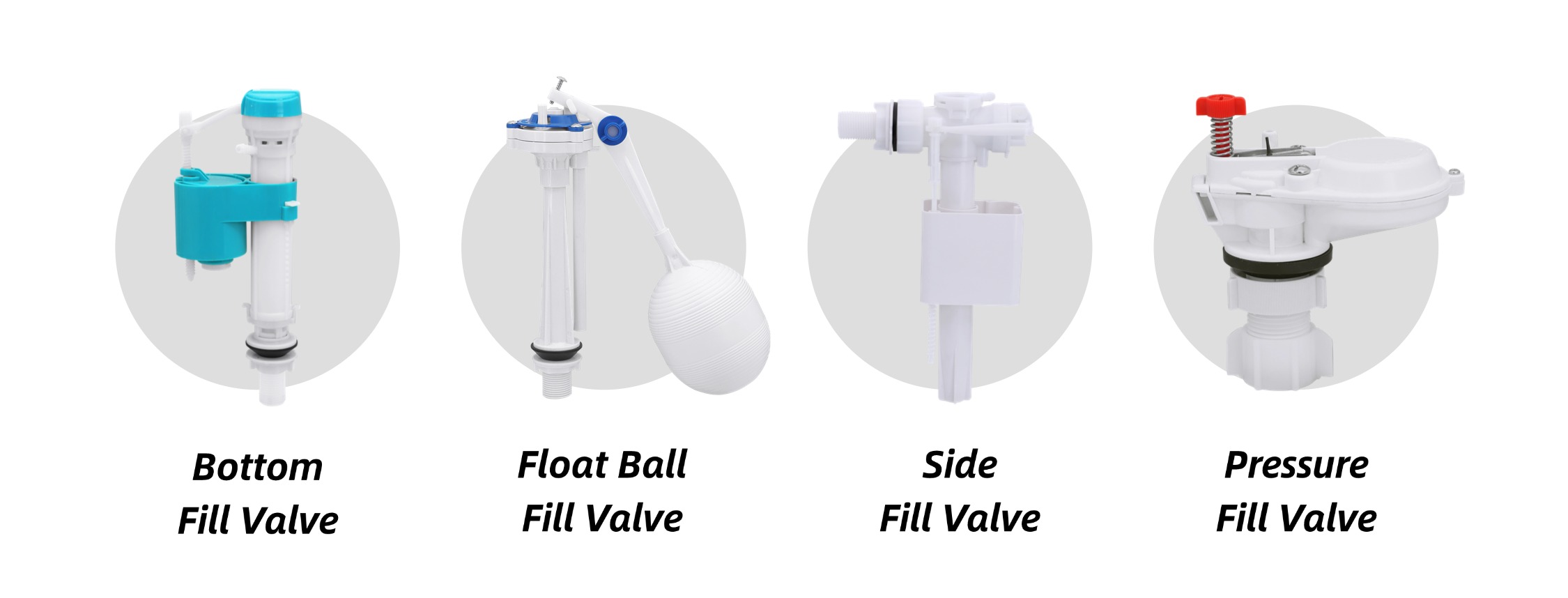

2. Two Common Types of Toilet Fill Valves

• Float-ball fill valve:

It uses a lever with a float ball to sense water level changes. As the float rises, it pushes the lever to stop water flow. However, it takes up a lot of space in the tank.

• Float-cup fill valve:

This modern, space-saving design is the mainstream option for most toilet tank systems today. The dual-float structure helps maintain stable refill speed and ensures quick shut-off when the water level is reached.

3. Preparations Before Adjusting the Fill Valve

• Turn off the water supply (angle valve).
• Remove the toilet tank lid.
• Confirm the type and structure of your fill valve.
• Locate the adjustment mechanism: screw, sliding rod, float clip, or adjustment tab.

4. How to Adjust the Toilet Fill Valve?

1) Float-cup Fill Valve (Mainstream Design)

• Coarse adjustment:

Most adjustable fill valves consist of two sections. Remove the locking clip or pin between them to raise or lower the valve height when the difference between actual and desired water level is large.

• Fine adjustment:

Locate the adjustment screw or lever near the float cup and turn it clockwise or counterclockwise to fine-tune the water level.

Note: Some designs adjust only the inner float height. After that, make sure the outer float is also set to the same height.

• Water level reference:

Fill until the water reaches the tank mark or sits about 1.5cm below the top of the overflow tube.

2) Float-ball Fill Valve (Traditional Design)

• Coarse adjustment:

Metal rods can be bent slightly to raise or lower the water level.

For plastic-rod designs, loosen the knob at the joint area to adjust the float height.

• Fine adjustment:

Some float balls can be screwed upward or downward to fine-tune the water level.

• Water level reference:

Same as above—tank mark or about 1.5cm below the overflow tube top.

5. How to Test After Adjustment

• Turn on the water supply and let the tank refill.
• Check if the water reaches the correct level marking.
• Inspect the fill valve base and connections for leakage.
• Listen to the refill sound: a good valve should stop instantly without dripping.
• Flush to confirm strong siphon and smooth waste removal in the toilet bowl.
• Run 3–5 cycles to ensure stable water level and proper shut-off.

6. Conclusion

1) Choose a height-adjustable and high-compatibility toilet fill valve.

2) Select quiet-refill and water-saving certified products for better performance and lower long-term water cost.

3) Jielin Plumbing Fill Valve Advantages:

• 3-year warranty and durable construction
• Multi-level height adjustment compatible with most toilet tank designs
• Quick shut-off technology for stable water level

4) Water level adjustment is simple and easy for most users.

5) Proper adjustment improves flushing power and reduces water waste.

6) Replace the fill valve when it becomes noisy, unstable, or difficult to adjust.
