The U7031 is a urinal inlet and flush outlet assembly for compatible ceramic urinals supplied with water from the wall behind the fixture. It combines a G1/2 male threaded connection, mounting components and a curved outlet that directs flushing water into the bowl. For distributors and maintenance buyers, it provides a replacement option to assess against an existing fitting or ceramic model.
Número de artículo :
U7031Garantía :
1Pedido (MOQ) :
100Puerto de embarque :
XiamenServicio personalizado :
Color, Package, LOGOPRODUCT DESCRIPTION
Product Name: Rear Inlet Urinal Flush Outlet with G1/2 Connection – U7031
Water supply from behind the urinal
Designed as a urinal flush outlet for rear inlet installations, the U7031 connects the wall-side water supply to the outlet inside the ceramic bowl. This arrangement suits fixtures with a rear water inlet rather than a top-entry flush pipe.
A replacement option for existing fixtures
When sourcing a replacement urinal spout for restroom maintenance, matching the original fitting is essential. Compare the inlet position, mounting opening, sealing surfaces and outlet dimensions to determine whether the U7031 suits the installed ceramic fixture.

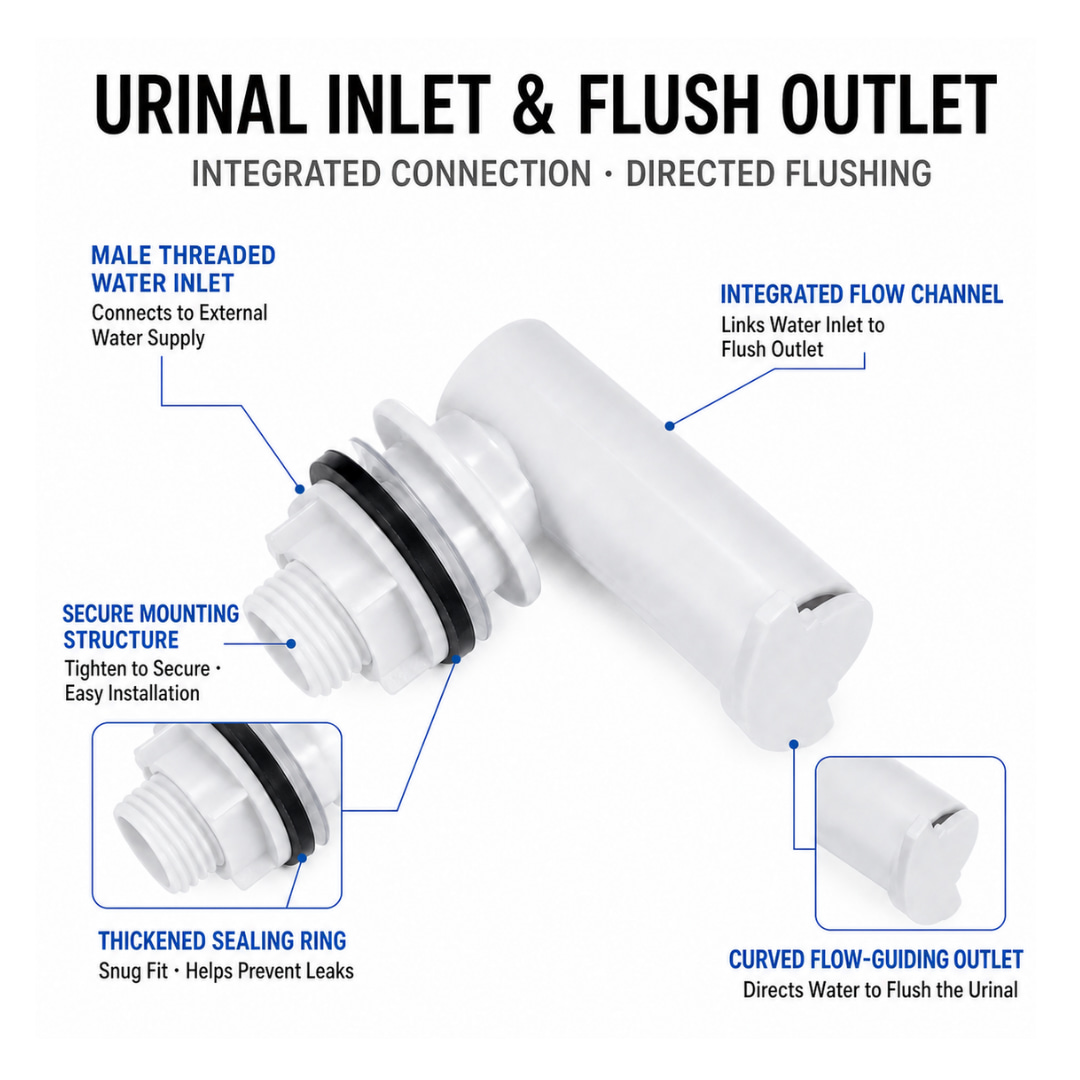

Integrated inlet and directed outlet

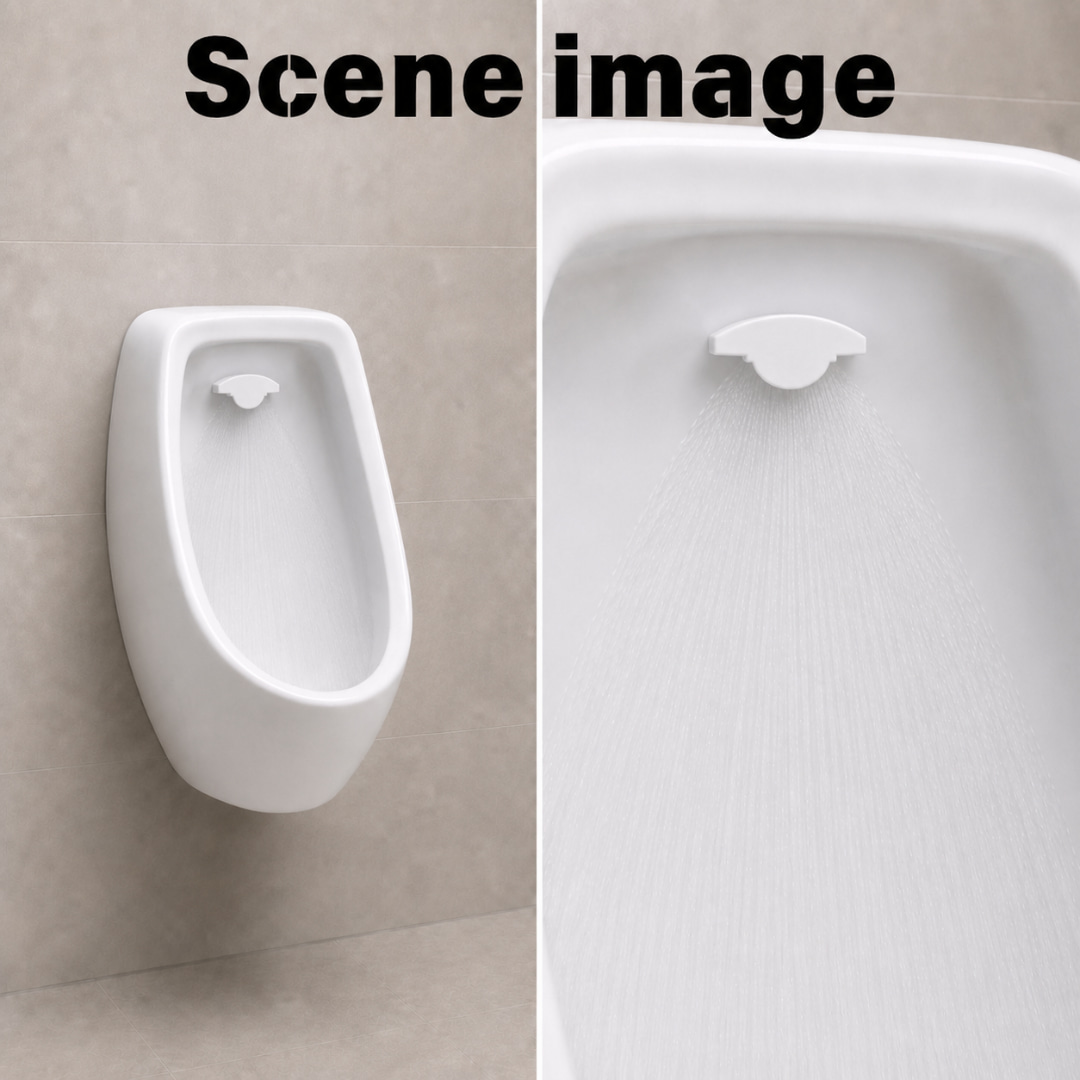

The white body links the water inlet to a curved flow-guiding outlet. Buyers selecting a urinal flush outlet for commercial washrooms can assess this integrated layout against their fixture design. Actual water distribution depends on the ceramic bowl and connected flushing system.
Threaded mounting and sealing components

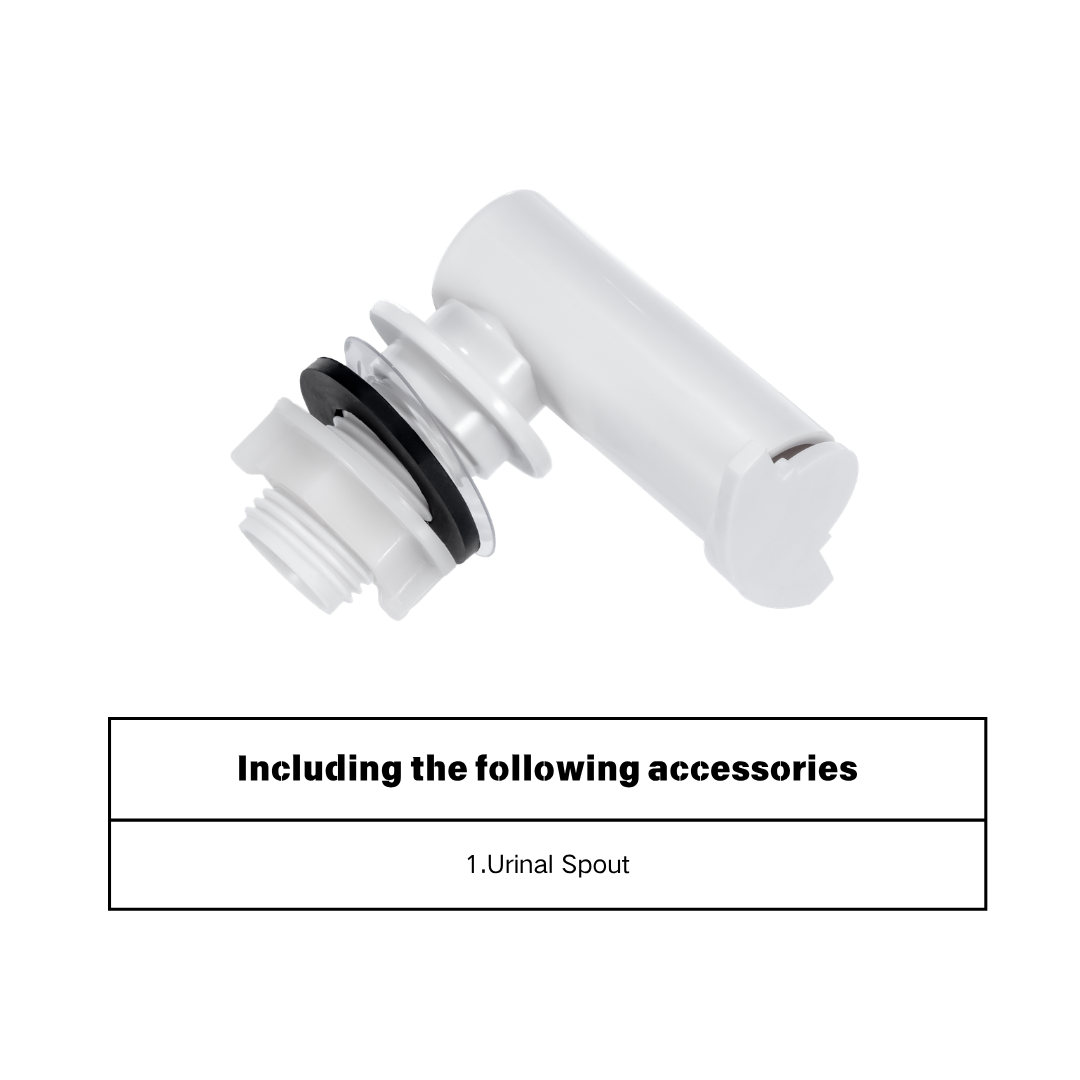

The assembly includes a male threaded inlet, mounting nut, black sealing ring and clear washer. When evaluating this urinal inlet fitting for ceramic urinal repairs, check both the supply connection and the ceramic mounting interface. A matching thread alone does not establish compatibility.

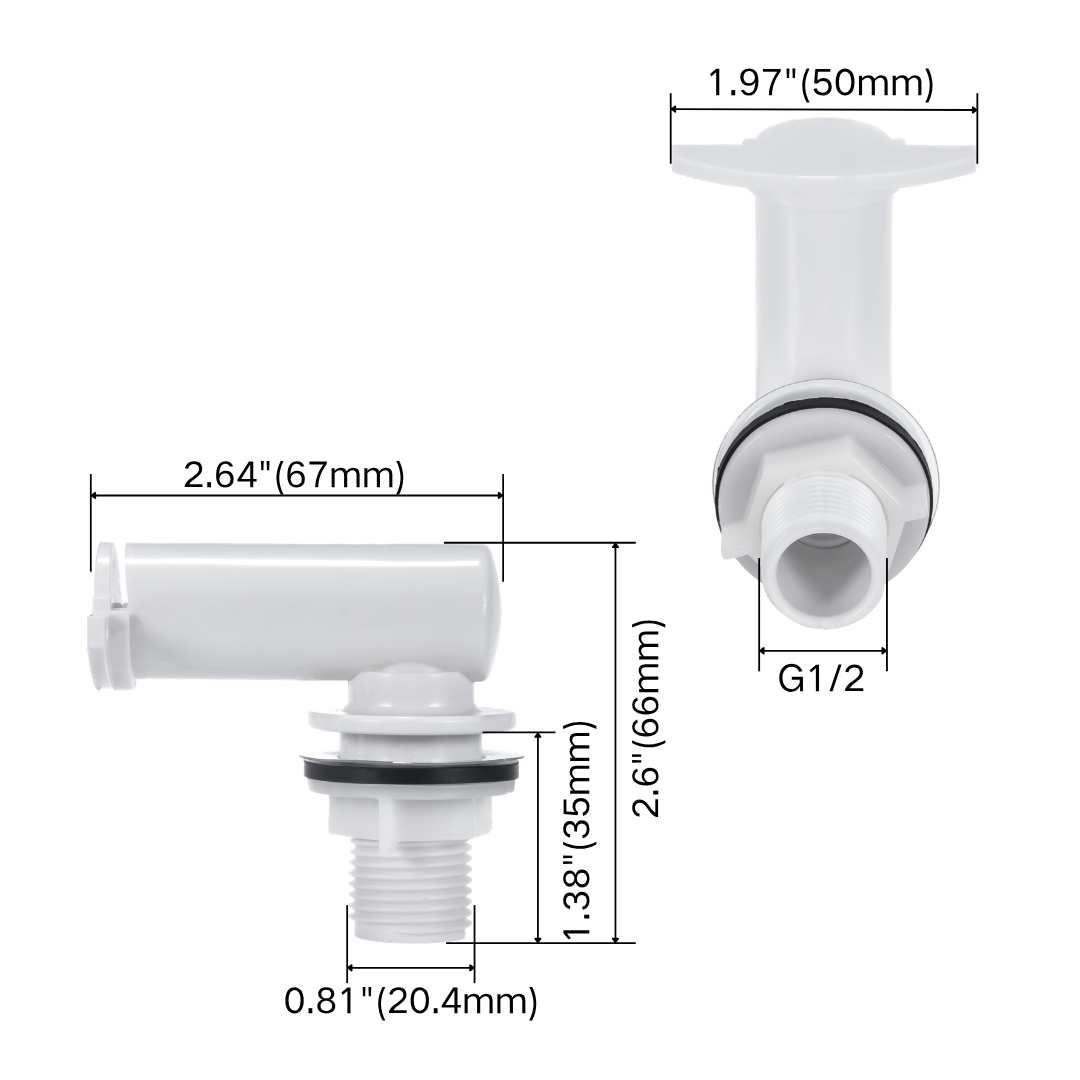

Dimensions for comparison
| Item | Specification |
| Model | U7031 |
| Water inlet arrangement | Rear inlet, supplied from the wall side |
| Supply connection | G1/2 male thread |
| Body length shown in drawing | 67 mm |
| Overall dimension across body and inlet assembly | 66 mm |
| Outlet width | 50 mm |
| Additional mounting-side dimension shown | 35 mm |
| Colour | White |
| Assembly components shown | Spout body, mounting nut, sealing ring and clear washer |
Dimensions follow the supplied product drawing. Compare the drawing with the original part and confirm fit using a sample before placing a replacement order.
Supply for spare-parts ranges

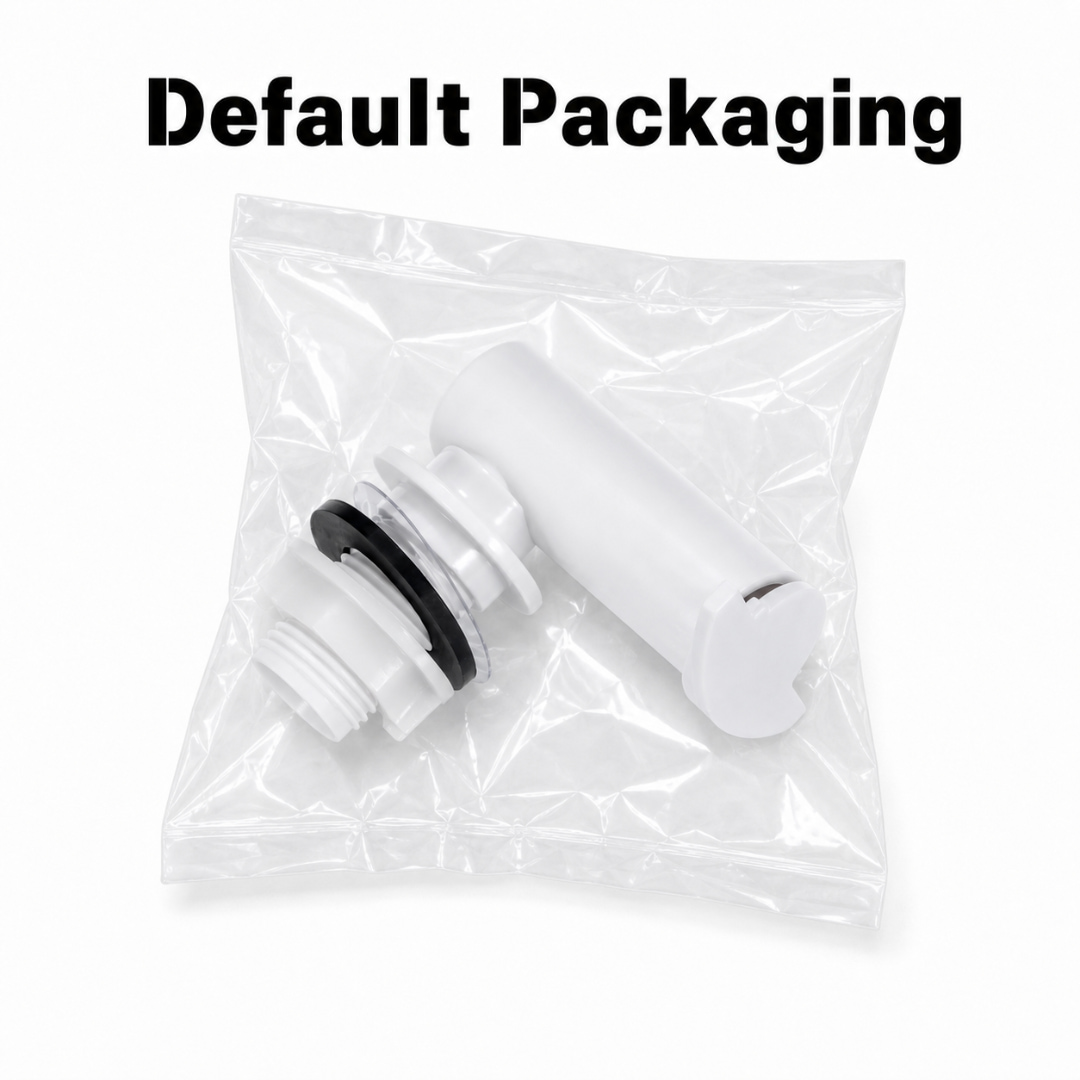

For buyers sourcing urinal replacement parts for distributors, the U7031 can be evaluated for inclusion in a service-parts range covering compatible rear inlet ceramic urinals. Samples are available for assessment, and individual clear-bag packaging is shown.

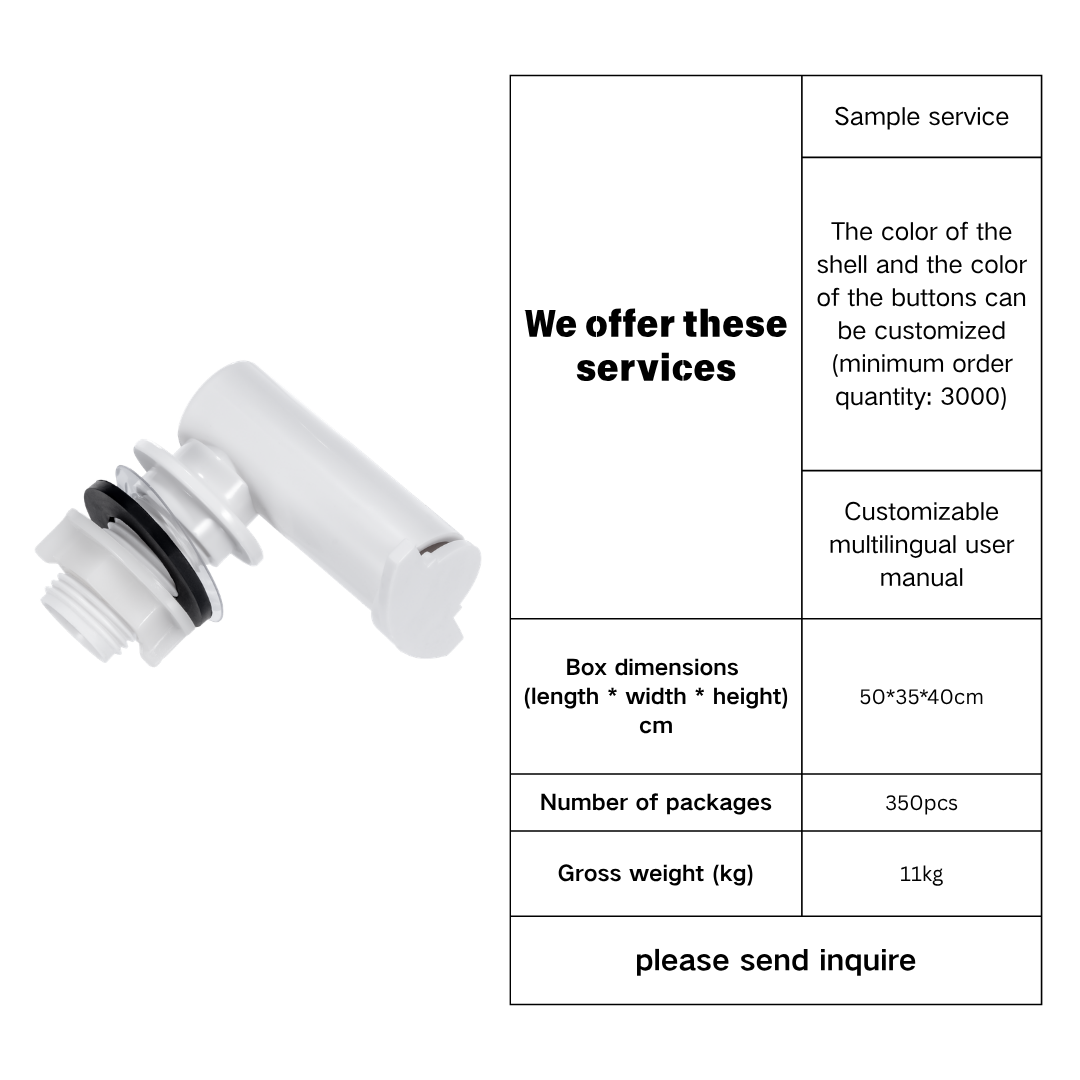

Reference carton information: 350 pieces per carton, 50 × 35 × 40 cm, with a gross weight of 11 kg. Confirm packing details for the quoted order.
Support for refurbishment sourcing
If you need a urinal flush spout for renovation projects, send photographs of the existing fitting, the ceramic model if known, key measurements and the required quantity. These details help establish whether the U7031 is a suitable candidate before sample evaluation and bulk purchasing.
| Delivery Time: |
≤ 2000 pcs / 15 days ≤ 5000 pcs / 20 days > 5000 pcs / negotiate |
| Sample Service | Yes |
| Supply Ability | 200000 pcs / month |
PRODUCT ADVANTAGES
1. Proven Performance Across Multiple Markets
Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.
2. Comprehensive Customization Services
We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.
3. Certified for Global Compliance
This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.
FAQ
Is the U7031 designed for rear inlet or top inlet urinals?
The U7031 is intended for compatible rear inlet urinals, where flushing water is supplied from the wall behind the fixture. Check that the ceramic urinal uses this inlet arrangement before selecting the fitting.
Will it fit any urinal with a G1/2 water connection?
No. The G1/2 connection is only one part of the fit assessment. The ceramic mounting hole, sealing surfaces, installation clearance, inlet position and outlet orientation must also match. Compare the original fitting with the dimension drawing and assess a sample before ordering.
What should I provide when requesting a sample or bulk quotation?
Please provide photographs of the existing spout and its mounting position, the ceramic brand and model if available, key dimensions and the required quantity. Include any packaging or instruction-language requirements in your inquiry.
WHY CHOOSE US?
1.Market Experience
Since 2004, we have been deeply engaged in the replacement and repair market. Our products have been tested by the market and continuously improved through multiple iterations. By choosing our products to expand your business, you can effectively avoid customer complaints.
2.Quality Guarantee
We adhere to high manufacturing standards, ensuring that every product undergoes rigorous testing for durability and compatibility. With our 3 years warranty, you can trust in the long-term reliability of our products, providing peace of mind for your business.
3.R&D Ability
We have our own product designers and packaging designers who can help you quickly develop and improve products to meet the needs of your local market. This ensures that your business gains recognition and success in your target market.
4.Customer Support
We assign a dedicated salesperson to each customer, providing market consultation in the early stages, detailed confirmation during production, and follow-up support after shipment. Our goal is to support your business at every step, ensuring a smooth and successful operation.
