The T3306 is a straight pan connector designed to connect a downward-facing toilet outlet to an aligned floor soil pipe. Its white body features a wider toilet-side opening, annular ribs and orange sealing elements at both connection interfaces. For plumbing buyers and bathroom project teams, selection starts with checking outlet dimensions, pipe size and the available space beneath the toilet.
Número de artículo :
T3306Garantía :
1Pedido (MOQ) :
1000Puerto de embarque :
XiamenServicio personalizado :
Color, Package, LOGOPRODUCT DESCRIPTION
The T3306 is a straight pan connector for floor-outlet toilets with a downward-facing outlet aligned with the floor soil pipe. It fits between these two interfaces to form the waste connection beneath the toilet.
When selecting a toilet replacement pan connector, check the outlet and pipe dimensions as well as the available space beneath the toilet. T3306 uses a straight connection layout; it does not provide sideways offset.

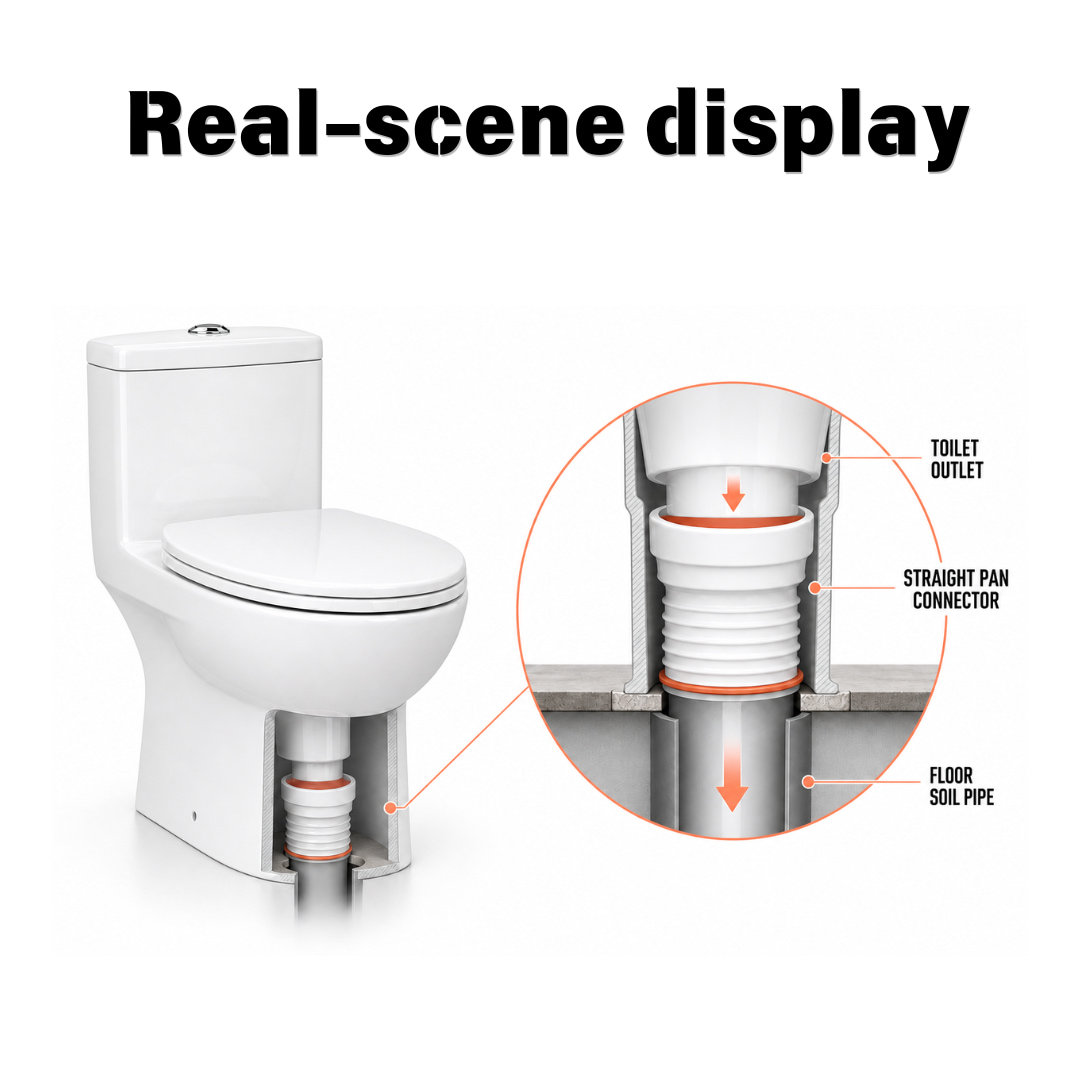

Illustrated connection position: toilet outlet → T3306 straight pan connector → floor soil pipe.

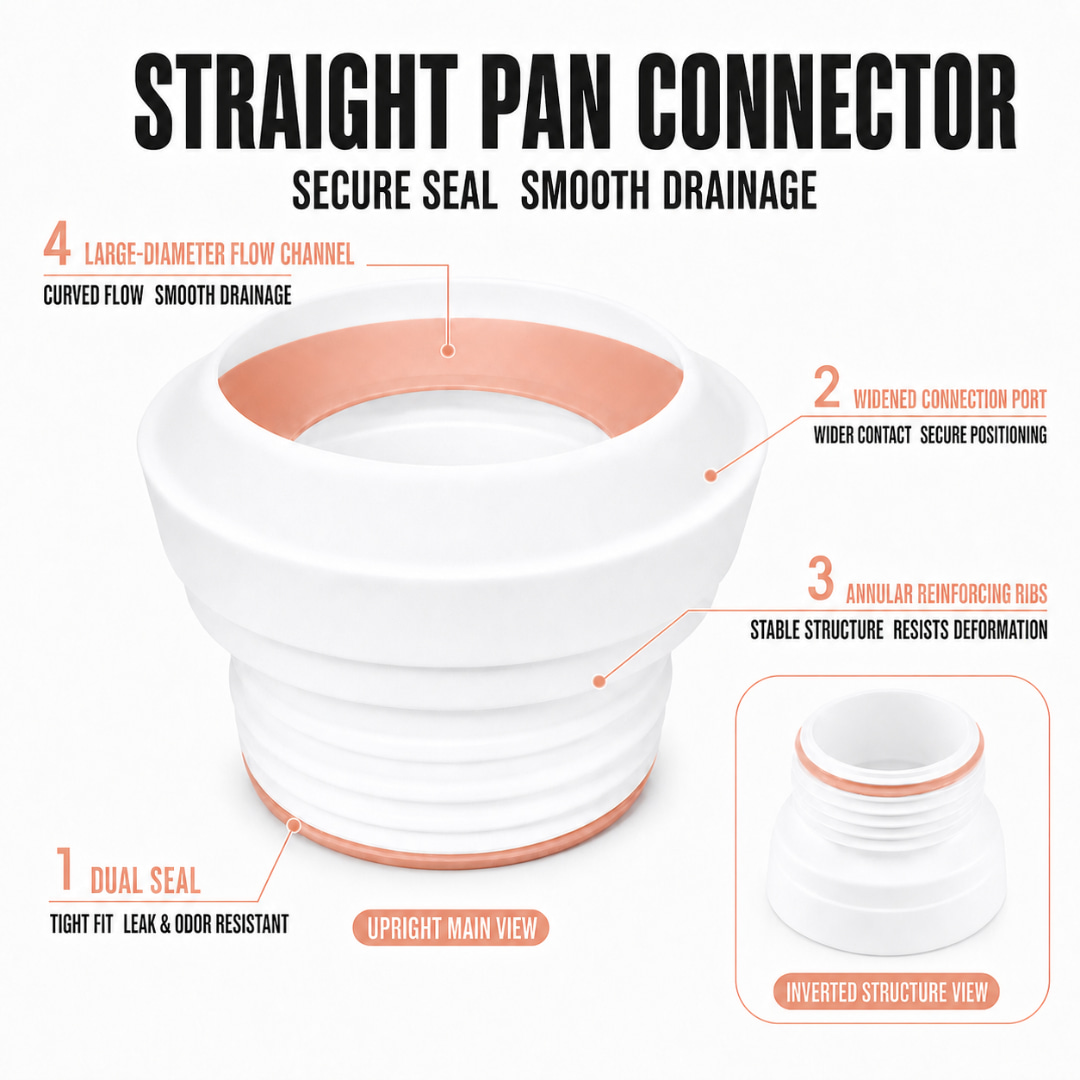

The wider opening contains an orange sealing element, while a second orange ring sits around the narrower end. The installation illustration shows these interfaces positioned at the toilet outlet and floor pipe connection.
For buyers evaluating a bathroom renovation pan connector, these connection points are central to selection. Confirm the mating dimensions and seating depth against the actual toilet and pipe before installation.

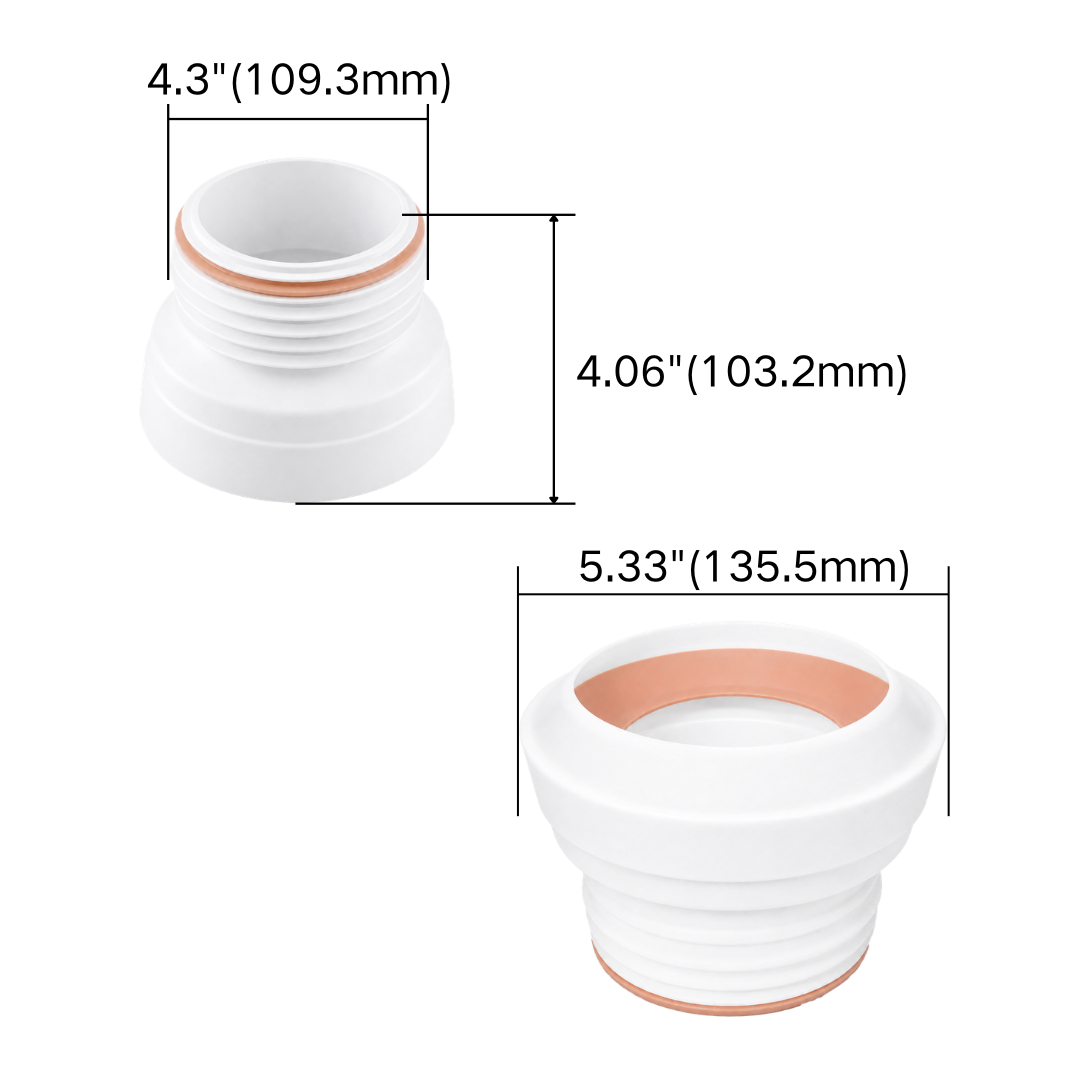

The white body features a stepped profile and annular ribs. Use the dimensions below to assess the product’s external envelope and available installation space.
| Specification | T3306 |
| Connection configuration | Straight, same-centerline layout |
| Overall height shown | 103.2 mm |
| Narrow-end external | 109.3 mm |
| wide-end external width shown | 135.5 mm |
| Body color | White |
| Sealing element color | Orange |
These measurements follow the supplied dimension diagram. External widths do not establish the compatible toilet outlet or soil pipe size. Check the mating diameters, insertion depth and clearance before ordering.
A straight pan connector sample for fit checks is available through the stated sample service. Request a sample to assess dimensional compatibility and seating with your intended toilet and floor pipe.
The supplied service information also lists a pan connector with a multilingual user manual option. Share your required languages and target market when discussing the order.

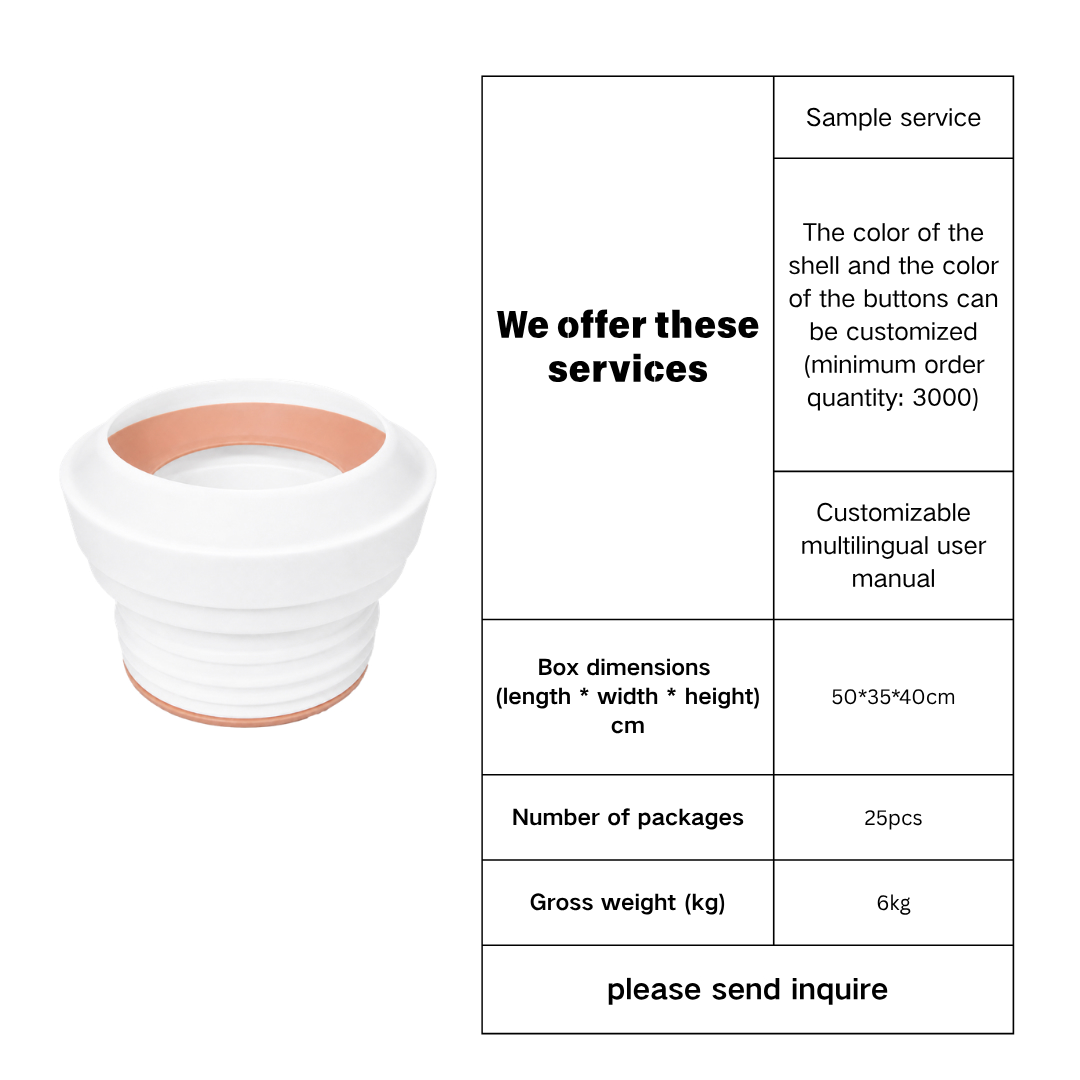

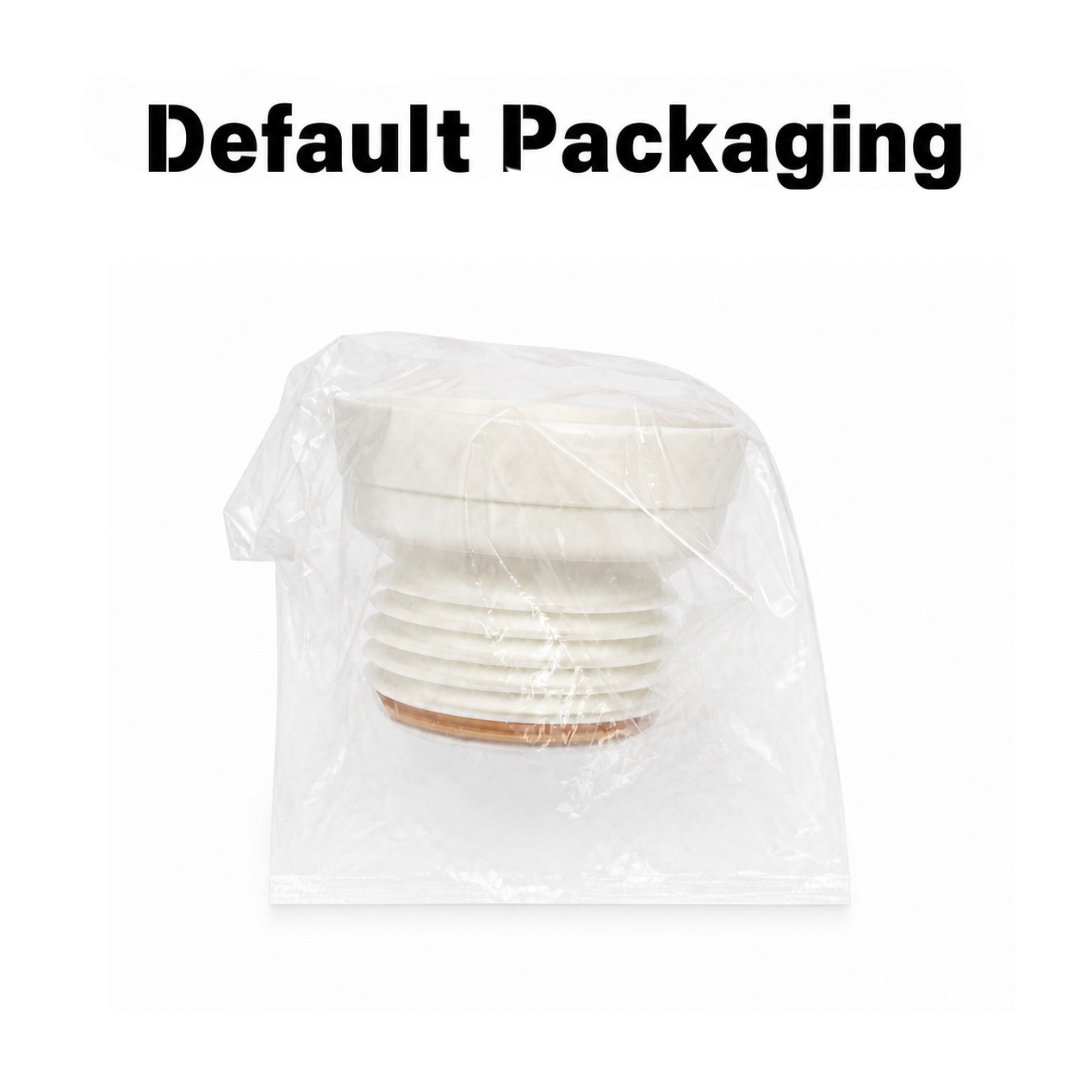

For buyers reviewing pan connector bulk packaging, the stated default pack is one connector in a clear plastic bag, with the following carton information:
| Packing item | Stated information |
| Quantity per carton | 25 pieces |
| Carton dimensions | 50 * 35 *40 cm |
| Gross weight per carton | 6 kg |
Send your toilet outlet measurements, floor soil pipe dimensions, available connection height and required quantity to check suitability and request a quotation. Interface photos and manual language requirements will help clarify the application and order details.
| Delivery Time: |
≤ 2000 pcs / 25 days ≤ 5000 pcs / 35 days > 5000 pcs / negotiate |
| Sample Service | Yes |
| Supply Ability | 200000 pcs / month |
PRODUCT ADVANTAGES
1. Proven Performance Across Multiple Markets
Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.
2. Comprehensive Customization Services
We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.
3. Certified for Global Compliance
This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.
FAQ
Can T3306 move the toilet outlet sideways?
No. T3306 is a straight connector for outlets positioned on the same centerline. If the toilet outlet and floor drain are horizontally misaligned, assess an offset connector with the required displacement.
What toilet outlet and floor pipe sizes does T3306 fit?
Fit requires confirmation of the toilet outlet and floor pipe dimensions. The supplied diagram shows external product widths and overall height, rather than a complete compatibility range. Send the mating dimensions, available installation height and interface photos for assessment.
Can I request a sample, and how is the product packed?
Yes, sample service is listed in the supplied product information. Default individual packaging is a clear plastic bag, with 25 pieces per 50 × 35 × 40 cm carton and a stated carton gross weight of 6 kg. Inquire about sample arrangements and any order-specific packing requirements.
WHY CHOOSE US?
1.Market Experience
Since 2004, we have been deeply engaged in the replacement and repair market. Our products have been tested by the market and continuously improved through multiple iterations. By choosing our products to expand your business, you can effectively avoid customer complaints.
2.Quality Guarantee
We adhere to high manufacturing standards, ensuring that every product undergoes rigorous testing for durability and compatibility. With our 3 years warranty, you can trust in the long-term reliability of our products, providing peace of mind for your business.
3.R&D Ability
We have our own product designers and packaging designers who can help you quickly develop and improve products to meet the needs of your local market. This ensures that your business gains recognition and success in your target market.
4.Customer Support
We assign a dedicated salesperson to each customer, providing market consultation in the early stages, detailed confirmation during production, and follow-up support after shipment. Our goal is to support your business at every step, ensuring a smooth and successful operation.
The T3306 is a straight pan connector designed to connect a downward-facing toilet outlet to an aligned floor soil pipe. Its white body features a wider toilet-side opening, annular ribs and orange sealing elements at both connection interfaces. For plumbing buyers and bathroom project teams, selection starts with checking outlet dimensions, pipe size and the available space beneath the toilet.
